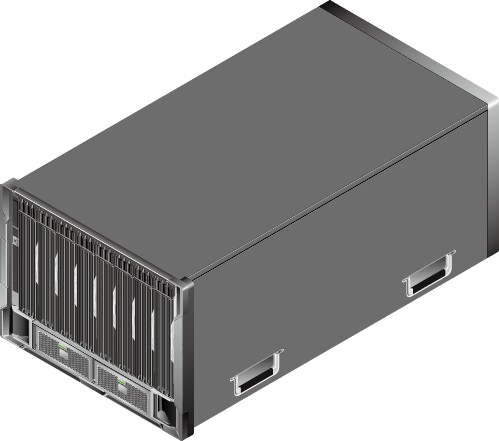

FusionServer 8100 V5 Rack Server

The FusionServer 8100 V5 is an 8U, 8-socket rack server designed for mission-critical business (such as OLTP, ERP, and CRM), in-memory database, virtualization, service integration, business analytics, and HPC. The 8100 V5 is fully modular and can be delivered in flexible configurations to address diversified service demands. High reliability, high performance, and excellent scalability are three outstanding features of the 8100 V5.
8100 V5 supports up to 8 Intel® Xeon® Scalable Processors, 96 DDR4 DIMM slots, and up to 48 x 2.5-inch SAS/SATA or 40 x 2.5-inch NVMe SSDs. 8100 V5 comes with various advanced Reliability, Availability, and Serviceability (RAS) features and security features, ensuring continuous and reliable service running.

Form Factor: 8U, 8-Socket Rack Server

Processor: Up to 8 Intel® Xeon® Scalable Processors

Memory: 96 DDR4 DIMM Slots, up to 12 TB

Storage: Up to 48 × 2.5-inch SAS/SATA drives or 40 × NVMe SSDs

RAID Support: RAID 0, 1, 5, 6, 10, 50 and 60

Networking: 2 × 10GbE and 2 × 1GbE ports

Expansion: Up to 18 PCIe 3.0 slots
